Metal Substitute Technology

金属代替技術
High-strength, high-precision, high-appearance injection-molded products
Weight reduction
Product category Design/Comfortable

Metal Substitute Technology

-Challenge-  CO2 emissions from metal production processes

As moving a vehicle that uses a lot of heavy metals requires a lot of gasoline and increases CO2 emissions, weight reduction has become a challenge. In addition, the production process of metals also emits a large amount of CO2, which calls for urgent countermeasures.
Furthermore, the forming of metal parts has limitations, making it difficult to provide designs that meet the needs of the market.

金属生産工程でのCO2排出量

-Solution-  Reduction of CO2 emissions through the use of plastic

SEKISUI’s injection-molded products also support highly precise design in terms of strength, bending, and fluidity through computer-aided engineering (CAE) technology and fiber orientation analysis, and contribute to improved fuel efficiency through weight reduction. The production process of the plastic products can also be expected to reduce CO2 emissions compared to that of metal products.

樹脂化によるCO2排出量の削減

-Technology-  Technical information

Technical information

Technical overview

 CAE technology + Fiber orientation analysis

CAE technology

High precision made possible by CAE technology
(strenght, bending, flowage) + Fiber orientation analysis.
CAE技術+繊維配向分析による高精度化

 Improves fuel-efficiency by weight reduction

Weight reduction

Improves fuel-efficiency by weight reduction
(20%~30% weight reduction in comparison with aluminum).
軽量化による燃費向上

 High-quality and clarity even with high mixture of GF

High quality, precision, and clarity

High GF filling (approx. GF50%) special PA + CAE technology (strength, bending, flowage) creates high strength, precision, and clarity injection-mold products.
GF高配合でも高平滑・高外観

Technical details

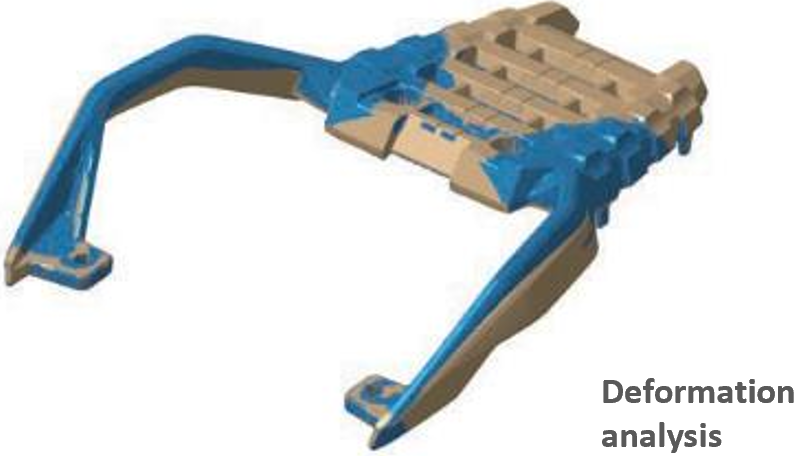

High Precision realized by CAE technology
(strength, bending, flowage) + Fiber orientation analysis

Improves fuel-efficiency by weight reduction

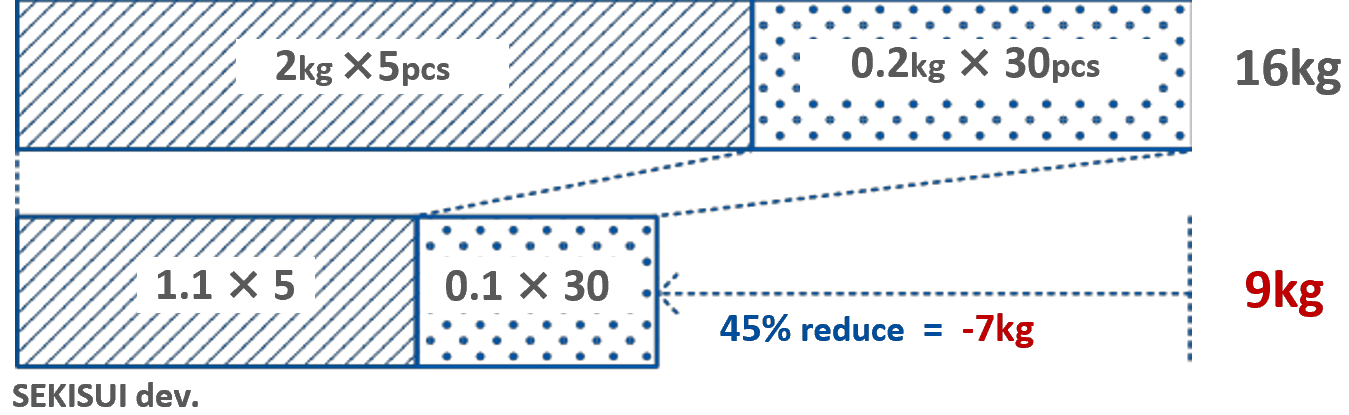

Resin is approx.45% lighter than aluminium.
Calculation of the total weight of the control box is 5 large units and 30 small units per vehicle.

Alminium

High-quality and clarity even with high mixture of GF

Inspite of the high mixture of GF 50%, special PA realises GF without floating and high-quality coating appearance with high smoothness.
